Please note there is a 3 to 4 week lead time on trommels at this current time

This unit has had no expense spared. Designed on the latest CAD Software and using nothing but the best materials sourced. One of the most portable 8" Trommel units on the market.

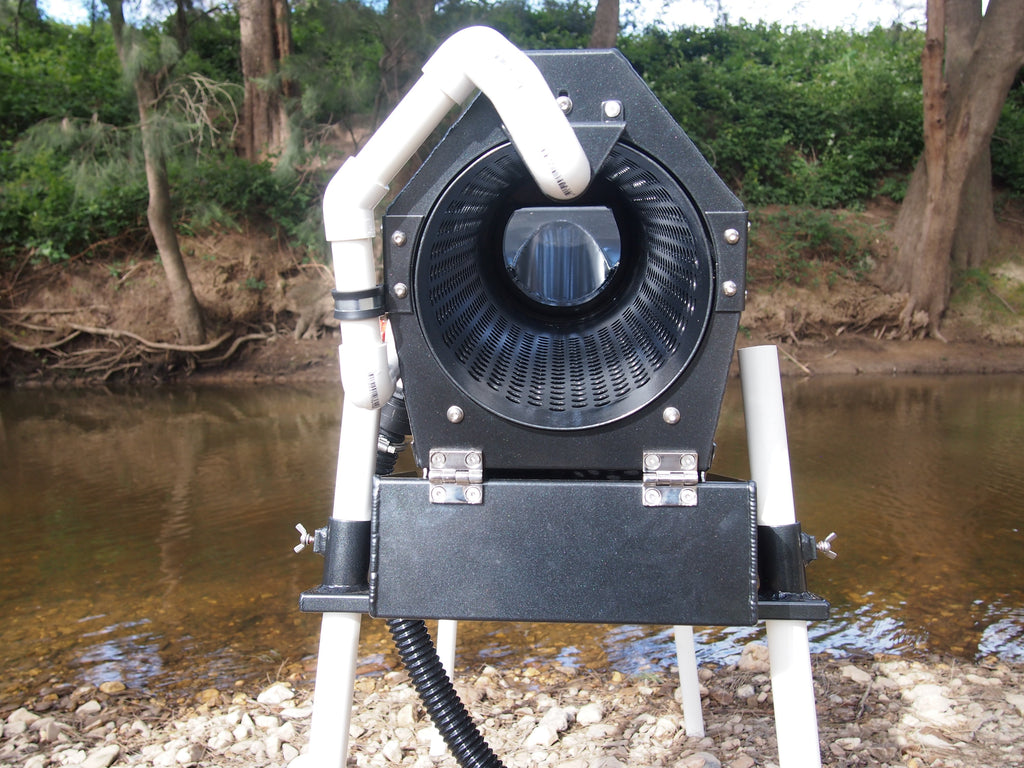

Made from 2 mm Aluminium construction, this unit is made to be light but yet strong enough to handle the punishment thrown at it. The 8" barrel is made from 2 mm Aluminium and comes with 13 mm holes as standard to keep this unit weight down, more portable but yet doesn't compromise its strength, a steel version of the barrel can be purchased in the store. Both Aluminium and Steel barrels come in 2 different sizes suitable for most applications (10 mm and 13 mm classifying holes). The unit is powered by a powerful 12 volt DC single speed motor so any 12 volt DC battery will work. All this is finished in a durable powder coated finish. We use Dulux powder coats so you know your getting a high quality finish.

Features :

*All Aluminium Construction

*Top unit weighs in at 15KG

*All Fasteners 304 Marine grade Stainless

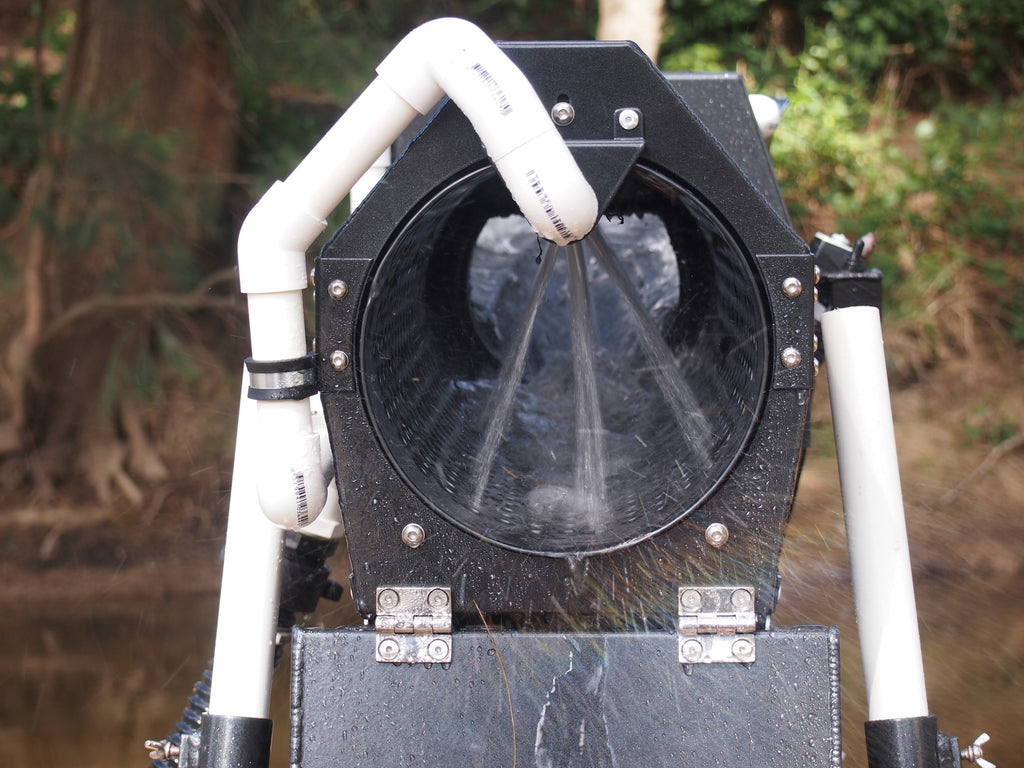

*8" Barrel with internal spray bar

*Gear to gear 12 volt DC motor (Waterproofed & Sealed) Please note on the tests we conducted we only ever saw a maximum of 1.6 amps current draw when barrel fully loaded up. This is an indication only but we run an 18AH battery and we get all day running for over 8 hours with no stoppages.

*Pre wired marine on/off switch

*High quality fully sealed stainless steel rollers for the barrel

*Large hopper approx. 420mm wide, 400mm long

*Durable powder coated finish

What's Included :

• Trommel top unit
• 5m cable to connect to motor
• 1m flexible hose to connect to spray bar inlet
• 12v DC Drive motor

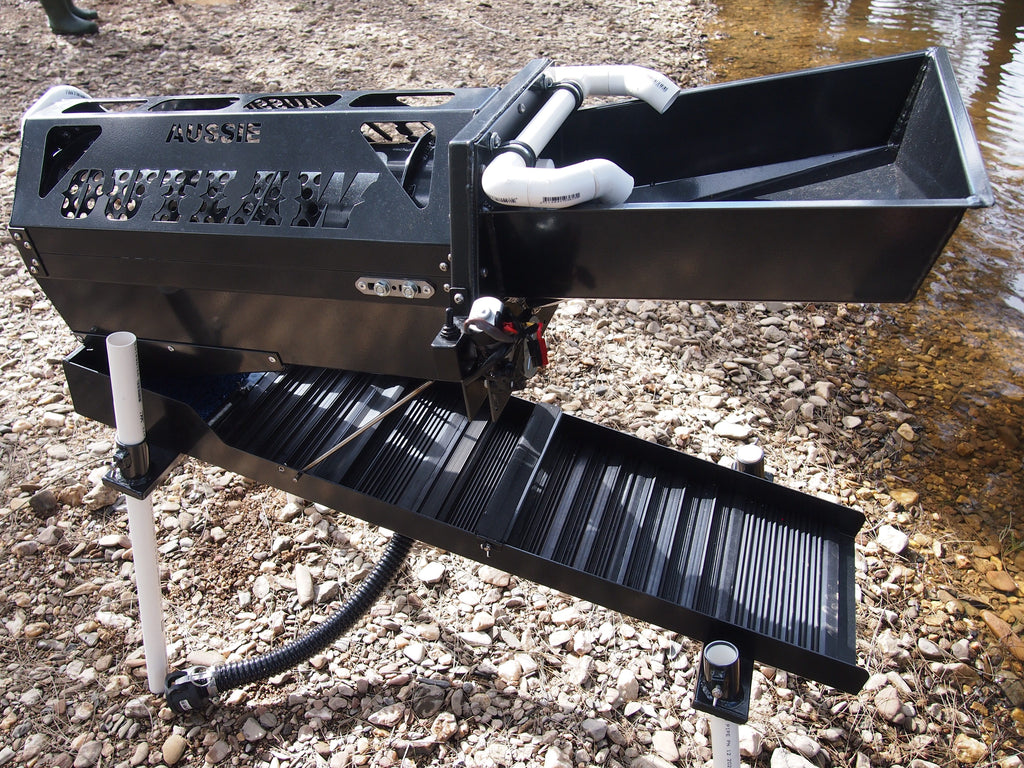

(Battery and pump not included) Pictures are for illustration purposes and sluice run not included with this model.

If you need assistance with picking the right battery for your application simply contact us at enquiries@xtremeprospecting.com.au and we will be sure to help you out.

Please note all units will be supplied with the standard colour of Black Onyx. More colour options may be possible in the future.
